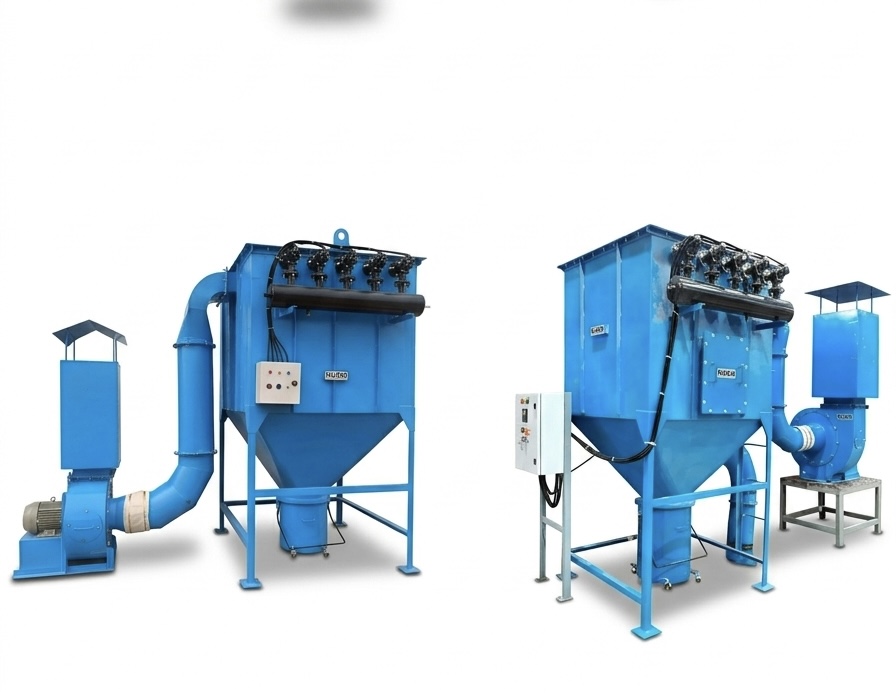

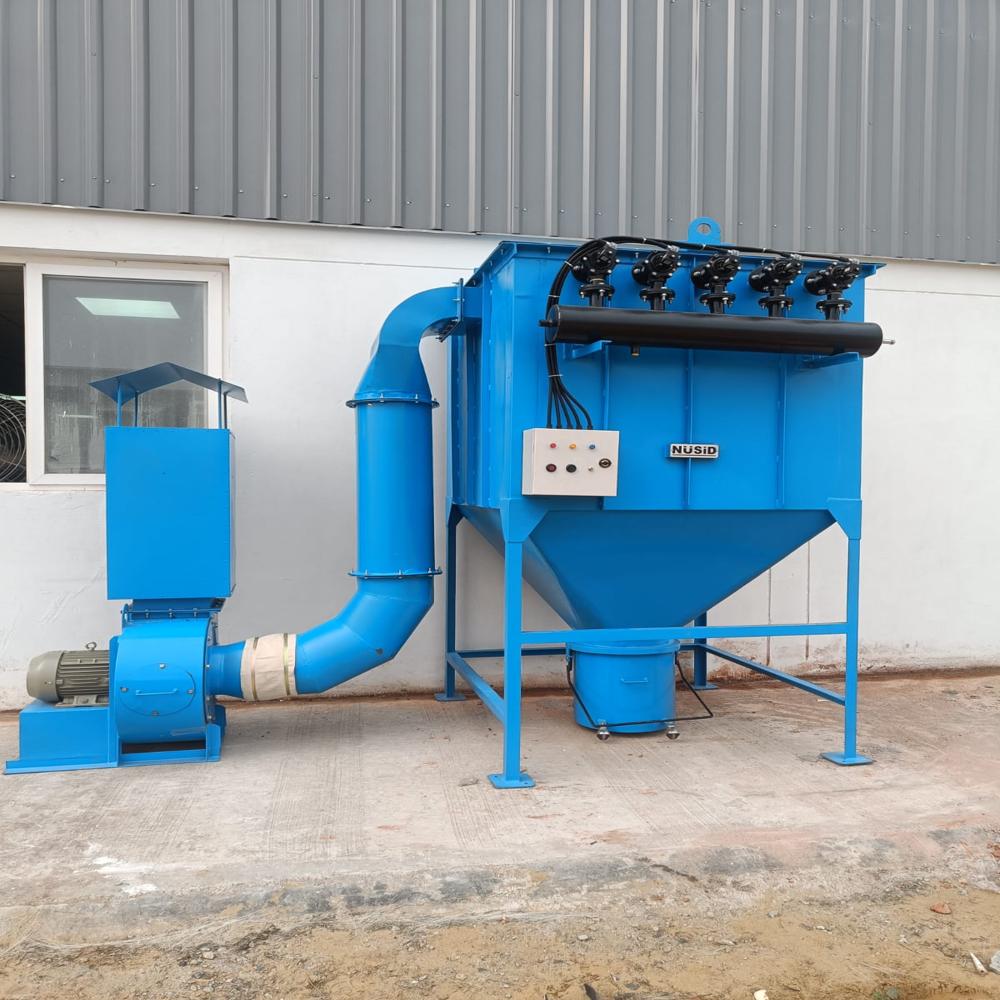

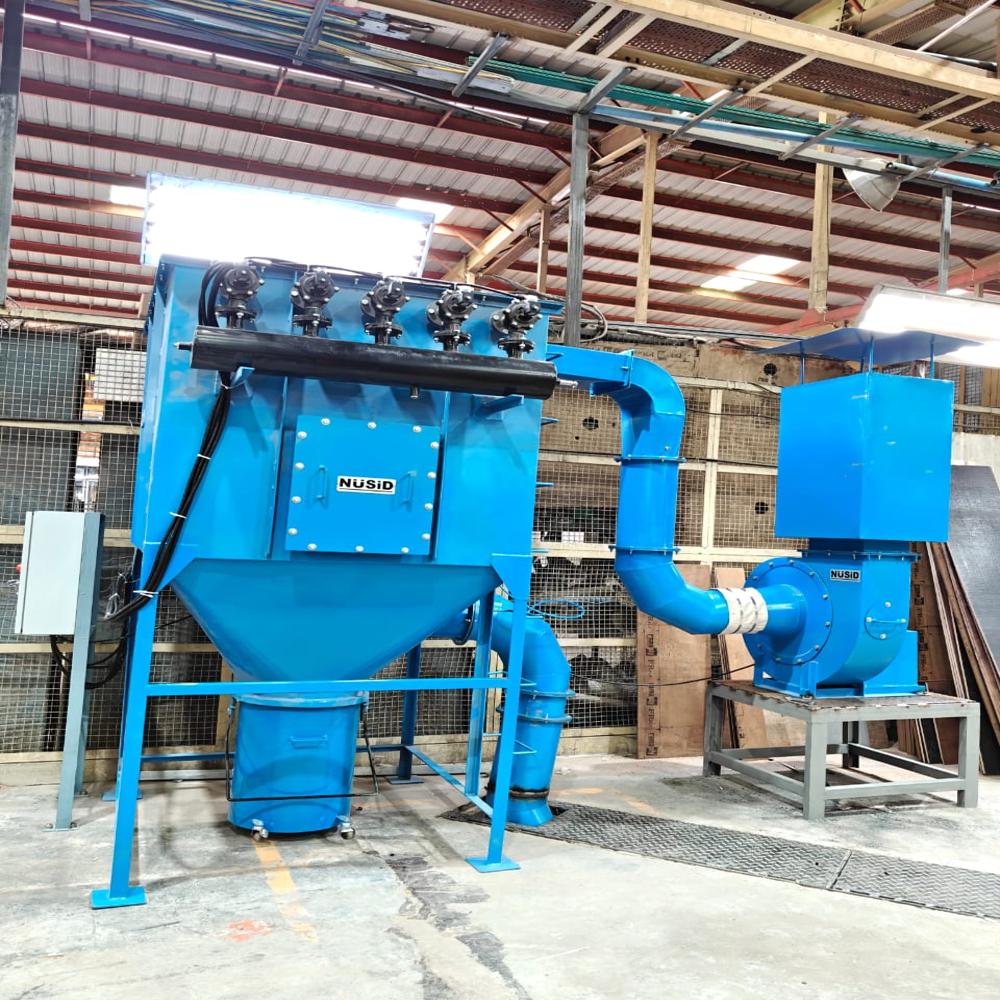

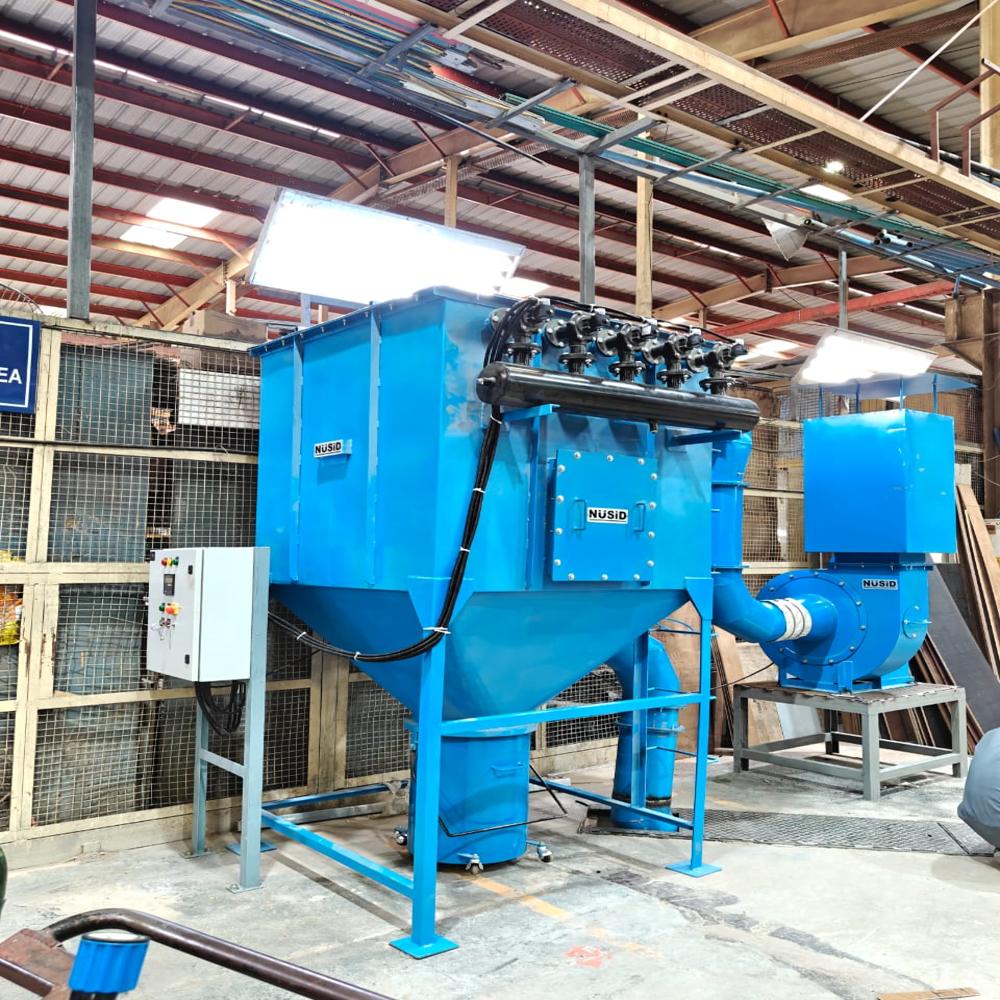

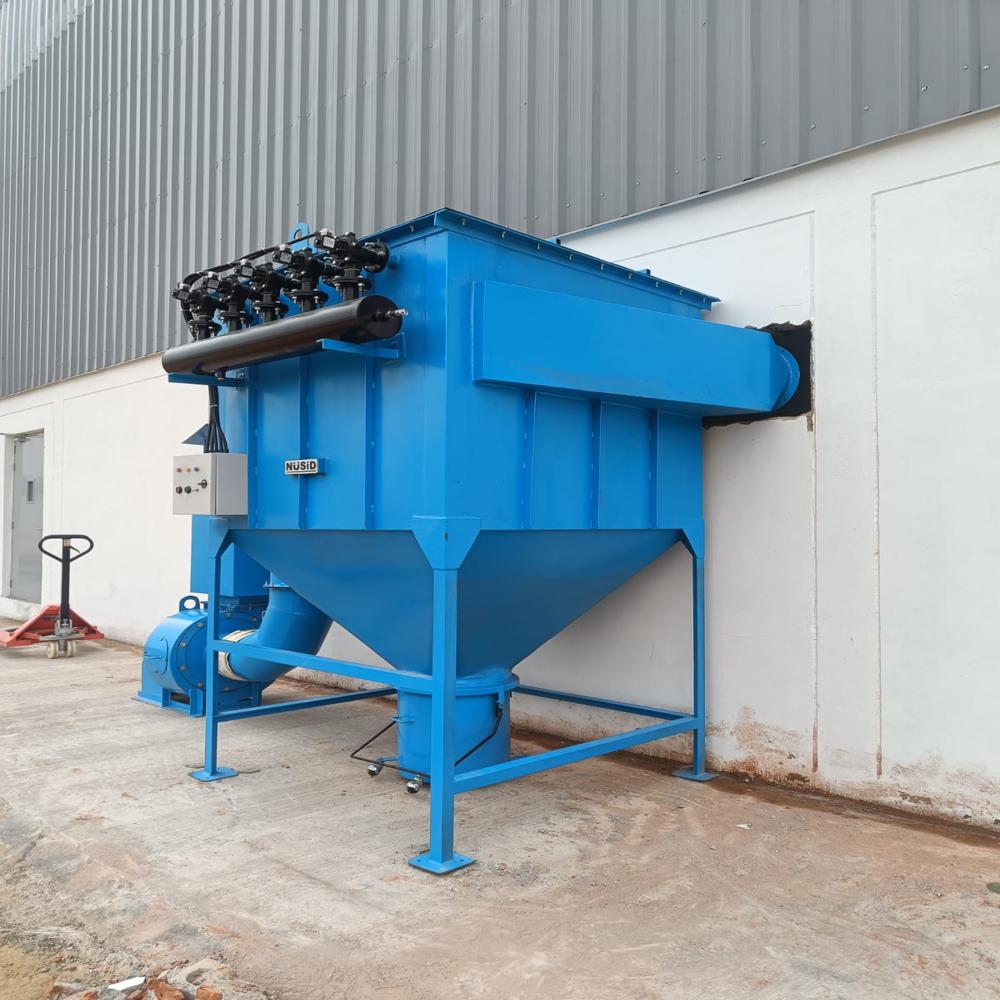

Centralised dust collector

Name: Centralised dust collector
Brand: NUSID CLEAN TECH PRIVATE LIMITED
Price: 200000.0 INR
Availability: InStock

Price 200000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Centralised dust collector Specification

Measurement
Particle Concentration

Orientation
Vertical

Display Type
Pressure Gauge

Usage & Applications
Industrial Dust Extraction, Manufacturing Plants, Pharmaceutical, Food Processing, Cement, Metal Grinding

Power Source
Electric

Efficiency
Up to 99.5%

Instruments Type
Dust Monitoring & Collection

Air Flow
Adjustable as per Model

Sensor Type
Differential Pressure Sensor

Scrubber Type
Dry Dust Collection (Bag Filter Type)

Temperature
Ambient, Max Operating up to 60C

Automation Grade
Semi-Automatic

Product Type
Centralised Dust Collector

Material
Mild Steel (Powder Coated)

Cooling System
Air Cooled

Noise Level
Below 75 dB

Processing Time
Continuous Operation

Capacity
500 m3/hr to 20,000 m3/hr

Voltage
415 V / 3 Phase / 50 Hz

Weight
500 kg (approx.)

Dimension (L*W*H)
1800 x 900 x 2400 mm

Surface
Anti-Corrosive, Powder Coated

Mounting Type
Floor Mounted

Maintenance
Low, easy access to filter bags

Motor Power
5 HP to 30 HP (model dependent)

Number of Bags
16 to 64 (as per capacity)

Discharge System
Dust Collection Bin

Outlet Diameter
250 mm (customizable)

Control Panel
Included (with safety interlocks)

Color
Grey (Standard)

Inlet Diameter
200 mm (customizable)

Filtration System
Multi Stage (Pre-filter, Bag Filter)

Filter Cleaning Mechanism
Auto Pulse Jet Cleaning

Installation
Onsite support available

Centralised dust collector Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
15 Days

About Centralised dust collector

A Centralised Dust Collector is an industrial air pollution control system used to collect dust, smoke, and fine particles from multiple machines or working areas through a single centralized unit. It helps maintain clean air, improves workplace safety, and protects machinery from dust accumulation.

The system mainly consists of ducts, suction hoods, blowers, filter bags/cartridges, and a dust storage hopper. Dust-laden air is sucked through pipelines and passed through filters where dust particles are separated, while clean air is released into the atmosphere.

Centralised dust collectors are widely used in industries such as woodworking, pharmaceuticals, cement, metal processing, food processing, and manufacturing plants. They improve production efficiency, reduce maintenance costs, and help industries comply with environmental and safety standards.

Multi-Stage High-Efficiency Filtration

Utilizing a pre-filter and bag filter arrangement, this dust collector achieves filtration efficiency up to 99.5%. The multi-stage process minimizes particulate release, safeguarding workplace air quality in industries from cement to food processing. Automatic pulse jet cleaning extends filter life and ensures system reliability, reducing downtime and manual cleaning interventions.

Customizable and Adaptable for Industrial Needs

With scalable motor power (5 HP to 30 HP) and customizable inlet and outlet sizes, this collector adjusts to various industrial applications. Choose from 16 to 64 filter bags to match your facility's dust volume, while the air flow remains adjustable per model. Installation is supported on-site for seamless integration into your operations.

User-Friendly Maintenance and Safety Features

Maintenance is simplified through the auto pulse jet cleaning and easy access to filter bags. The robust control panel includes safety interlocks, while pressure gauges and differential pressure sensors provide at-a-glance system monitoring. Powder-coated, anti-corrosive construction tolerates harsh environments, delivering low noise (<75 dB) and continuous operation for demanding workloads.

FAQ's of Centralised dust collector:

Q: How does the auto pulse jet cleaning mechanism improve filter maintenance?

A: The auto pulse jet cleaning system periodically releases bursts of air to dislodge dust build-up on the filter bags, keeping filtration efficiency high and reducing the need for manual cleaning. This leads to less downtime and extends filter lifespan.

Q: What industries benefit most from installing this centralised dust collector?

A: Industries such as manufacturing, pharmaceuticals, food processing, metal grinding, and cement plants greatly benefit from this system. Its high efficiency and continuous operation are tailored for environments with significant airborne particulate matter.

Q: When should the dust collection bin be emptied, and how is this done?

A: The dust collection bin should be emptied regularly based on the dust volume processed. The system's monitoring instruments help track fill levels. Emptying is straightforward, thanks to the accessible bin design, ensuring uninterrupted performance.

Q: Where can the dust collector be installed, and is onsite support available?

A: This floor-mounted unit is suitable for indoor industrial settings. Onsite support for installation is provided, ensuring correct setup and integration with your facility's dust management system.

Q: What is involved in the process of customizing the inlet and outlet diameters?

A: The manufacturer offers custom inlet (200 mm) and outlet (250 mm) diameters to suit specific ducting and airflow requirements. Discuss your needs during ordering to ensure seamless connectivity and optimal performance.

Q: How does the system ensure user and equipment safety?

A: Safety interlocks in the control panel, air-cooled design, pressure sensors, and anti-corrosive powder-coating combine to protect operators and maintain reliable, safe system operation in various environments.

Q: What are the key benefits of using a multi-stage filtration dust collector in continuous operation?

A: Multi-stage filtration maximizes particle removal, keeping workplace air clean and equipment safe. The system's continuous operation, adjustable airflow, and automatic filter cleaning minimize disruption, support regulatory compliance, and improve overall productivity.
